Best AI Rendering for Archicad: Native, Plugin, or Browser?

The best AI rendering tool for Archicad depends on what must stay connected. Choose Archicad AI Visualizer for concept images inside Archicad. Choose Enscape, Twinmotion, or D5 Render when the model must drive a live visualization. Choose CAD Scene when several source tools need one browser workflow for still-image studies and focused edits. Keep Archicad's built-in PhotoRendering route when surfaces, lights, and settings need direct model control.

Do not choose from a gallery alone. Save one Archicad view. Test the same camera, brief, correction, and delivery size in two candidates. Compare every accepted image with the BIM model.

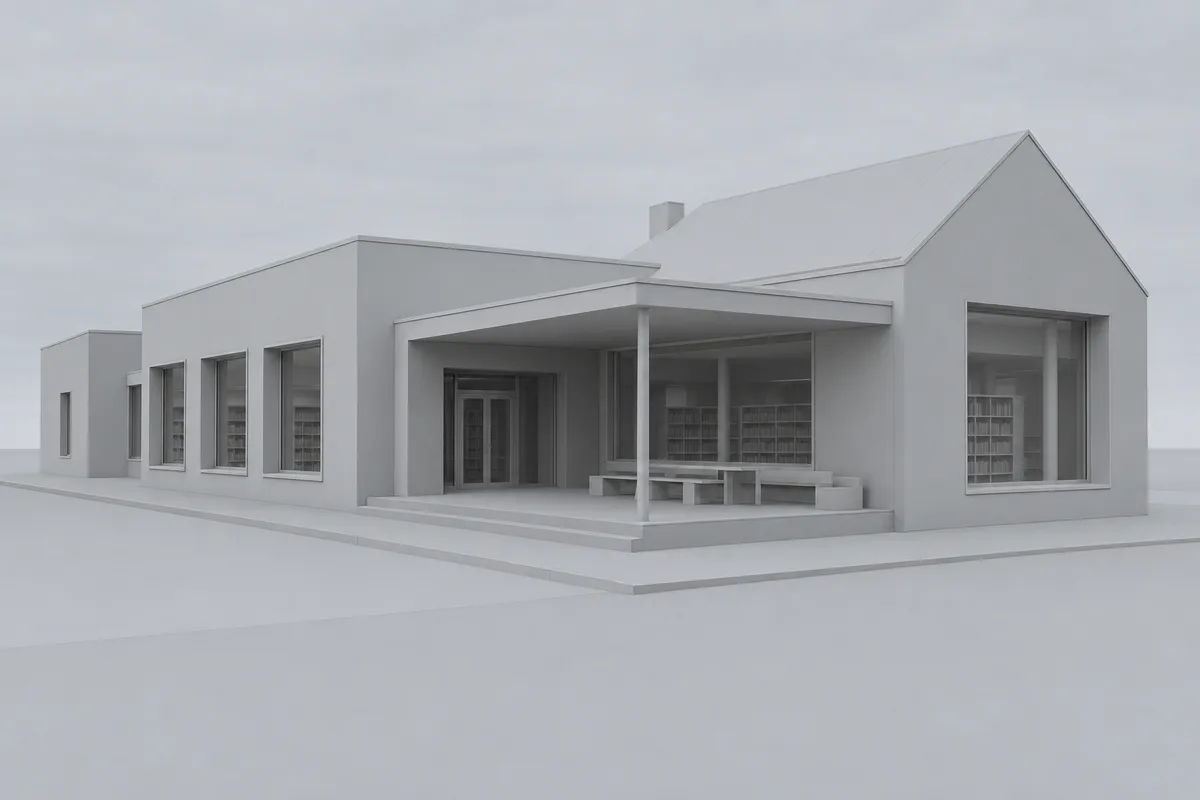

Synthetic source

Material study

What is the honest verdict for Archicad users?

Start with the required connection to the BIM model. That decision narrows the field faster than a feature list.

This is a focused shortlist. It is not a complete market directory. Each route has current public documentation and a distinct Archicad handoff.

The practical Archicad to AI render workflow covers saved views, display cleanup, image export, prompting, and source review. This page owns the tool choice around that workflow.

How was this Archicad shortlist researched?

The review uses current official pages accessed on 27 September 2026. It checks Archicad connection, camera handoff, edit path, project continuity, and output scope. CAD Scene facts come from current product code and documentation.

This is a desk review. We did not run private competitor accounts. Vendor statements about fidelity, speed, or synchronization remain vendor statements. Unknown behavior stays unknown. Your own project is the acceptance test.

The latest fixed Search Console window gives the existing Archicad workflow page 281 impressions, two clicks, and average position 14.08. Google also reports 70 Generative AI impressions for that page. Those reports show discovery, not product quality or buyer preference.

What should an Archicad rendering tool do well?

A useful route should keep the source understandable before adding atmosphere. It should also support the corrections that follow.

Check seven things:

1. Model connection. Does the route read the model or only visible pixels?
2. Camera handoff. Can one saved view be repeated after design changes?
3. Geometry review. Can you compare openings and repeated elements clearly?
4. Material control. Do finishes stay on plausible surfaces?
5. Correction path. Can one issue change without rebuilding the image?
6. Delivery scope. Do you need stills, motion, VR, or walkthroughs?
7. Studio fit. Can the team deploy, update, and review the route reliably?

A longer feature list does not repair a moved opening. Judge the accepted deliverable and the work required to reach it.

Which rendering routes fit Archicad workflows?

The strongest options solve different handoffs. The order below starts with the portable browser route, then moves toward deeper model connection.

CAD Scene for mixed-stack still studies

CAD Scene starts from an exported Archicad view in Enhance. The source image sets visible camera, framing, geometry, and proportions as constraints. Generated details can still drift. Compare every important image with the saved Archicad view.

Create, Enhance, and Edit share one Project. The Composition stays at Project level. Its Style, Scene, Lighting, Materials, and Entourage fields apply across related studies. Edit supports Rectangle, Brush, Eraser, and multiple named regions for focused corrections.

Choose CAD Scene when Archicad is one source among SketchUp, Revit, Rhino, Blender, Vectorworks, or another tool. CAD Scene does not read .pln files, BIM properties, layers, objects, or schedules. It is a still-image workbench, not a live renderer.

The screenshot-to-render method explains the image handoff. The public retention review method explains how to check it.

Archicad AI Visualizer for an in-product concept route

Graphisoft includes AI Visualizer 2.0 with current Archicad 29 Collaborate and Studio plans. Its official page describes images, textures, isolated objects, and high-resolution output from sketches, models, ideas, and prompts.

Choose it when the team wants an early concept route inside Archicad. The source model remains close to the image task. Availability depends on the current Archicad plan and service.

An in-product route is not a documentation guarantee. Check generated openings, small elements, materials, and product details against the BIM model.

Enscape for live model-connected review

Chaos Enscape supports Archicad 27, 28, and 29 on current Windows and macOS paths. Its Archicad documentation describes real-time visualization and synchronized views from the host application.

Choose Enscape when the team needs the Archicad model to remain active during design review. It also fits walkthrough and VR work that a still-image browser route does not replace.

Enscape still needs compatible hardware, plugin deployment, and version checks. The Enscape and AI rendering guide covers the connected-model decision in more detail.

Twinmotion for scenes, motion, and immersive delivery

Twinmotion's current Datasmith Exporter supports Archicad 23 through 29. Direct Link can synchronize Archicad files with one click. Its official plugin page also documents camera synchronization and combining several source files.

Choose Twinmotion when the deliverable extends beyond a still image. It suits real-time scenes, animation, panoramas, and immersive presentation.

The Archicad connection still depends on compatible exporter and application versions. The Twinmotion or AI rendering guide separates connected scenes from fixed-view image studies.

D5 Render for live synchronization and BIM organization

D5 publishes LiveSync support for Archicad 21 through 29. Its current Archicad page describes model, material, camera, and BIM metadata transfer. It also notes that real-time synchronization works in a 3D perspective.

Choose D5 when real-time scene building, assets, and BIM organization matter. Check the current Archicad and D5 versions before deployment. Also test how project lights, materials, and view changes transfer in your own file.

Archicad PhotoRendering for direct model control

Archicad 29 includes the Cineware engine outside Solo. Graphisoft documents surface, light, and rendering settings inside the BIM application. Redshift is also listed as a technology preview with limitations.

Choose this route when the still image should stay tied to Archicad surfaces, lights, and render settings. It asks for more deliberate setup than a prompt route. That setup can be valuable when repeatable model control matters.

Is a plugin better than a browser workflow?

Neither route is always better. Decide what must remain connected after the camera is saved.

Choose a connected route when Archicad remains open through every option. Choose a browser route when consultants and staff supply images from several tools. Some studios use both.

Prompt library · 28 promptsSource-preserving conversionsSuch as “Canopy Library Sketch to Render”.Browse prompts

How should you run one fair Archicad test?

Save the source before opening any rendering tool. Archicad views can retain projection, visibility, Graphic Overrides, Renovation Filters, zoom, and image settings.

1. 01

   Save the intended 3D view

   Fix the camera, crop, visible layers, renovation state, overrides, and aspect ratio.
2. 02

   Remove working graphics

   Hide dimensions, grids, markers, selections, cutting guides, and temporary objects.
3. 03

   Prepare one controlled handoff

   Use the same view and intended crop in each candidate route.
4. 04

   Write one short brief

   Name materials, light, landscape, and atmosphere without redesigning the building.
5. 05

   Request one correction

   Change one finish or object after the first acceptable image.
6. 06

   Review one delivery

   Compare the camera, openings, repeated parts, output size, and full approval path.

Before / after

Test one saved Archicad view in CAD Scene.

Start freeYour first renders are free. No credit card.

What should you check in every result?

Check source adherence before realism. Place the saved Archicad view beside the render. Review camera height, projection, crop, roof edges, floor lines, openings, stairs, railings, and repeated bays.

Then inspect the requested finish:

• glazing should stay inside the intended openings;
• masonry and cladding should stop at plausible boundaries;
• roof edges should not gain false trim;
• landscape should not hide design evidence;
• people should keep believable scale;
• a local edit should leave unrelated areas acceptable.

Both studies use one synthetic source and the same camera. They do not compare vendor output. Their purpose is to show the visual checks a fair test needs.

How should you compare Archicad rendering prices?

Price the accepted deliverable, not the lowest plan card. Subscription terms, plugin access, seats, hardware, output types, credits, and commercial terms differ.

CAD Scene uses model-dependent credits. Quality and Resolution can change the cost. The Composer shows the exact total before submission. Current plans live on the pricing page. The AI rendering pricing guide explains the credit model.

For every candidate, confirm the live vendor card and checkout. This article does not copy competitor prices because those figures can change before the workflow does.

Sources reviewed

• Graphisoft AI Solutions, reviewed 27 September 2026
• Archicad 29 PhotoRendering, reviewed 27 September 2026
• Chaos Enscape system requirements and Archicad feature highlights, reviewed 27 September 2026
• Twinmotion Datasmith Exporter for Archicad, reviewed 27 September 2026
• D5 Render for Archicad, reviewed 27 September 2026
• CAD Scene Product, Glossary, Help, pricing code, and model catalog, reviewed 27 September 2026
